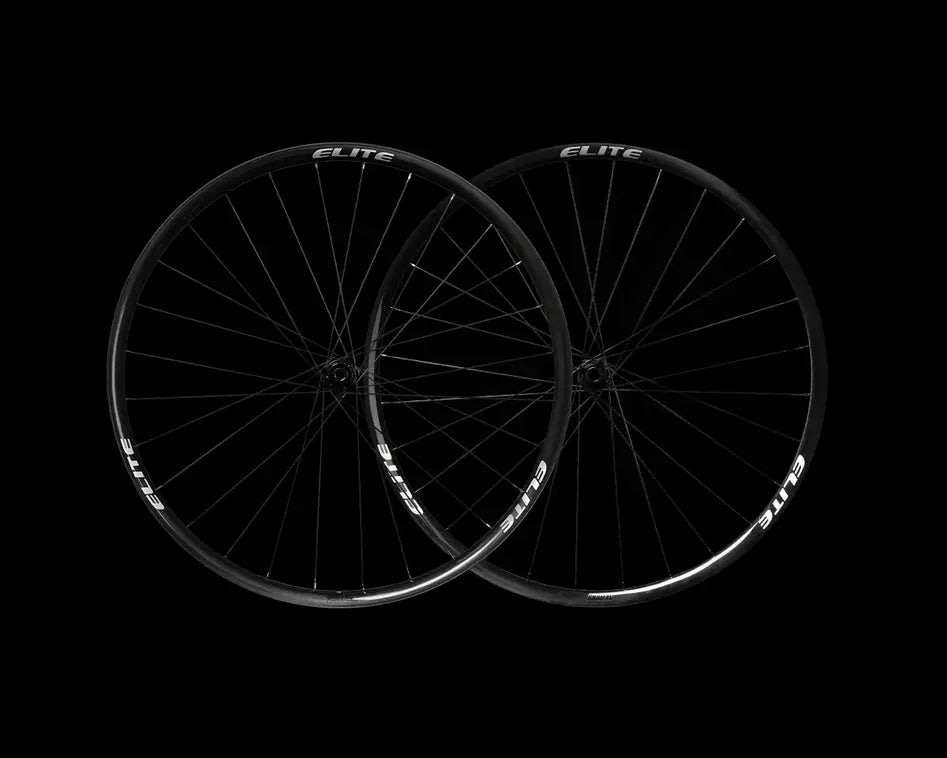

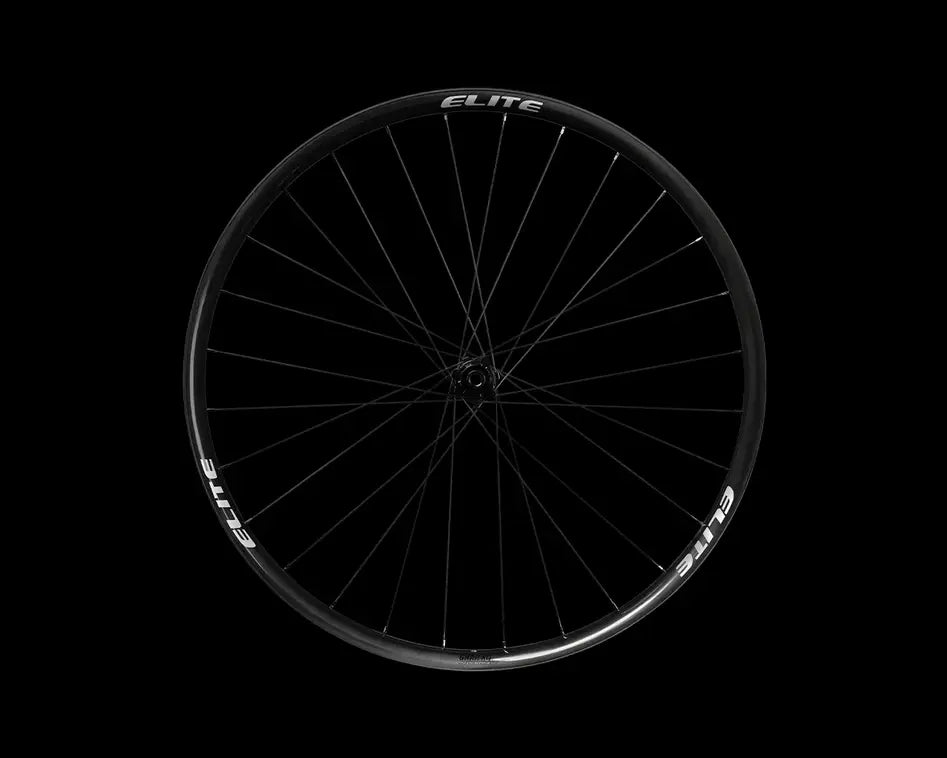

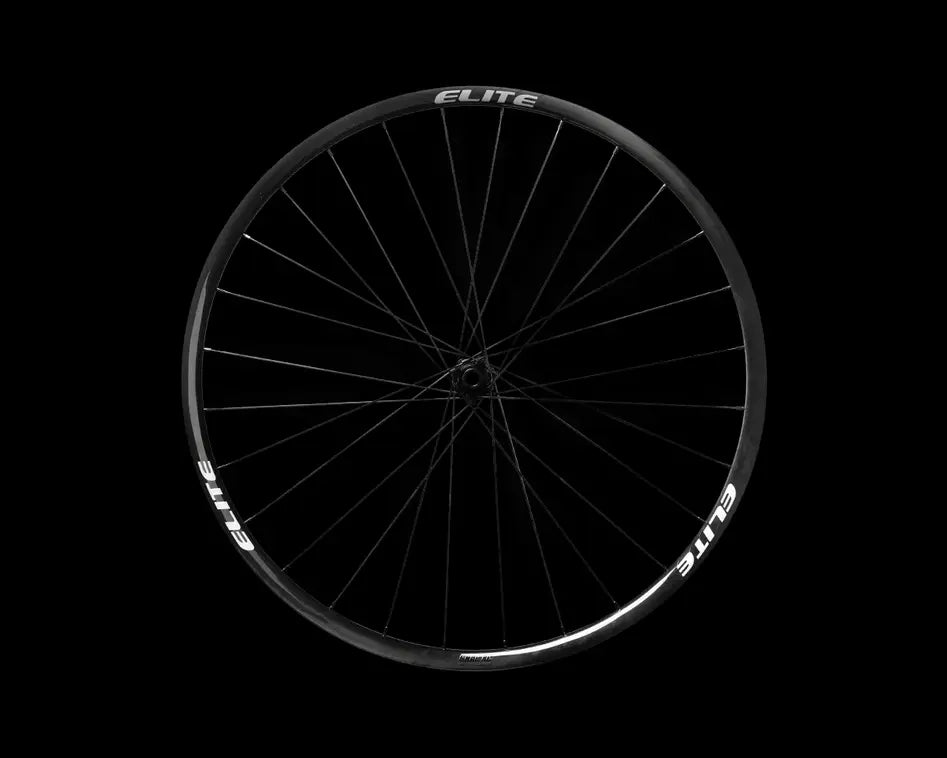

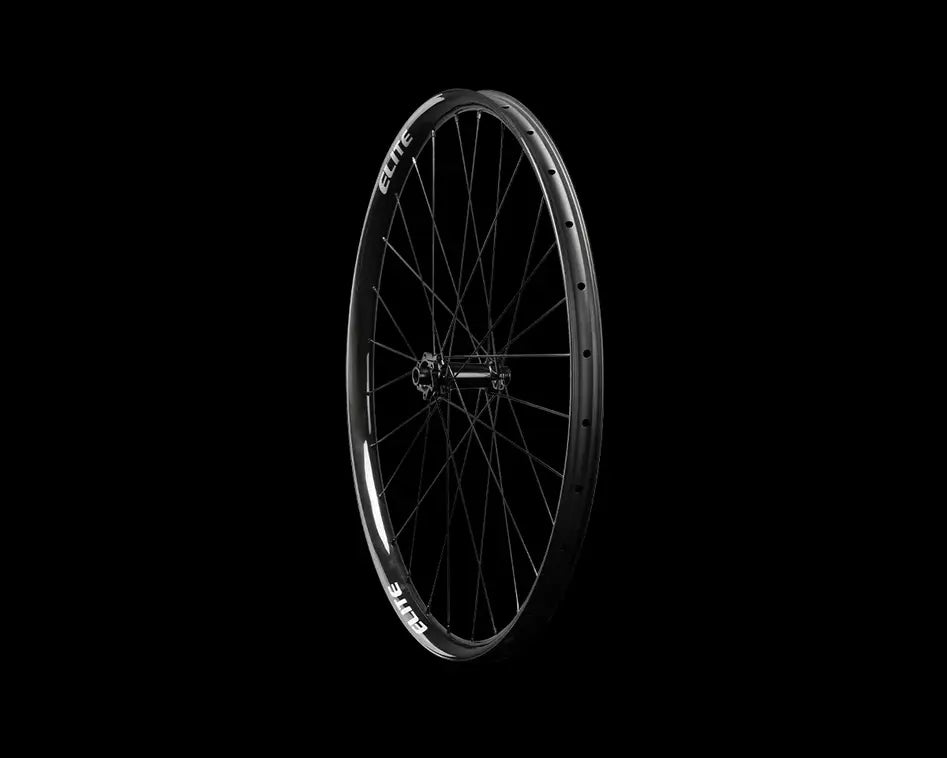

The 29er Gnar XC Carbon wheelset is designed for XC disciplines. It has a modern rim shape featuring an asymmetrical profile with a 30mm internal width. Paired with Elitewheels’s upgraded 50T Ratchet, the Gnar XC excels on even the most technical terrain, offering instant power transfer.
Brake Interface: The wheels come standard in a 6-bolt configuration.
*Please kind note that riding that goes beyond the scope intended for this wheelset will void its warranty.
| Rim |
|
| Wheel Size |
29″ |
| Tire Compatibility |
Tubeless |
| Rim Depth |
23mm |
| Inner Width |
30mm |
| Outer Width |
36mm |
| Rim Profile |
Asymmetric |
| Offset |
3mm |
| Bead Type |
Hookless |
| Rim Finish |
UD Glossy Black |
| Other |
|
| Max Tire Pressure |
60psi/4.14bar |
| Extras |
Rim Tape(Installed), Tubeless Valves(Installed) |
| Weight (Pair) |
1320+/-30g(without tubeless valves and rim tape) |
| Rider Weight Limit |
275lbs/125kg |
| Recommended Tire Sizes |
2.2″-2.7″ |
| Compatible Tire Sizes |
700×35-50c |
| Intended Use |
Cross Country |
| ERD |
593mm |
| Hub |
|
| Front Hub Spacing |
15x110mm |
| Rear Hub Spacing |
12x148mm |
| Bearing |
TPI Steel |
| Brake Compatibility |
Disc (6-bolt) |
| Freehub Type |
50T Ratchet |
| Freehub Compatibility |
Shimano HG / SRAM XD / Shimano MS |
| Spoke |
|
| Front Spoke Pattern |
3X/3X(1:1）
|
| Rear Spoke Pattern |
3X/3X(1:1）
|
| Spoke Count |
28F/28R |
| Spoke Type |
Sapim CX-Ray |
| Nipple Type |
Sapim Secure Lock |
