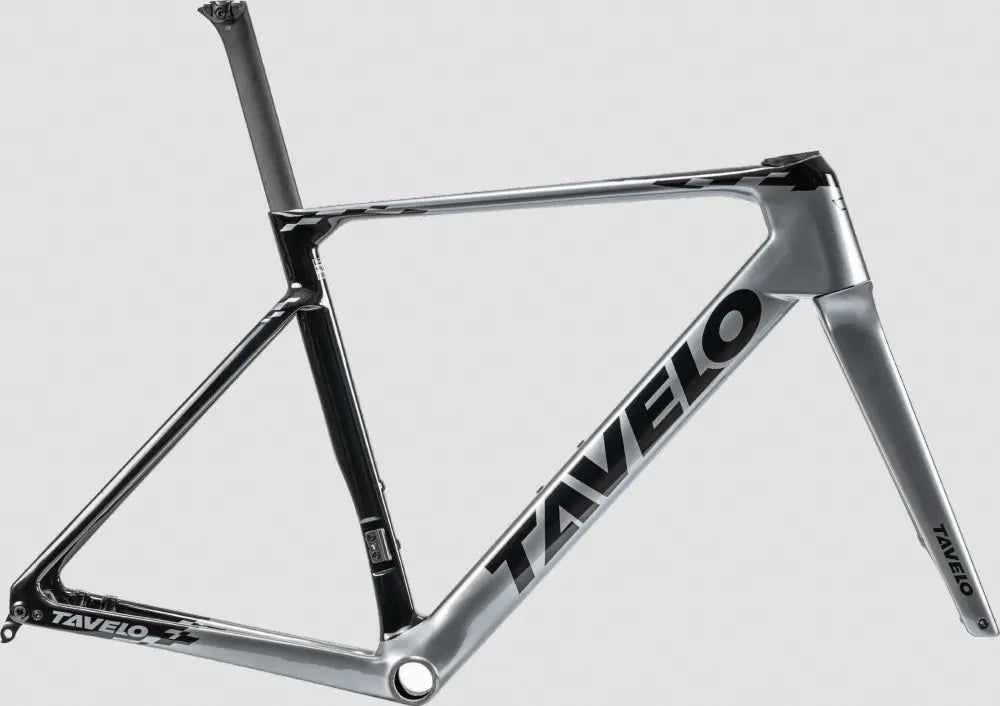

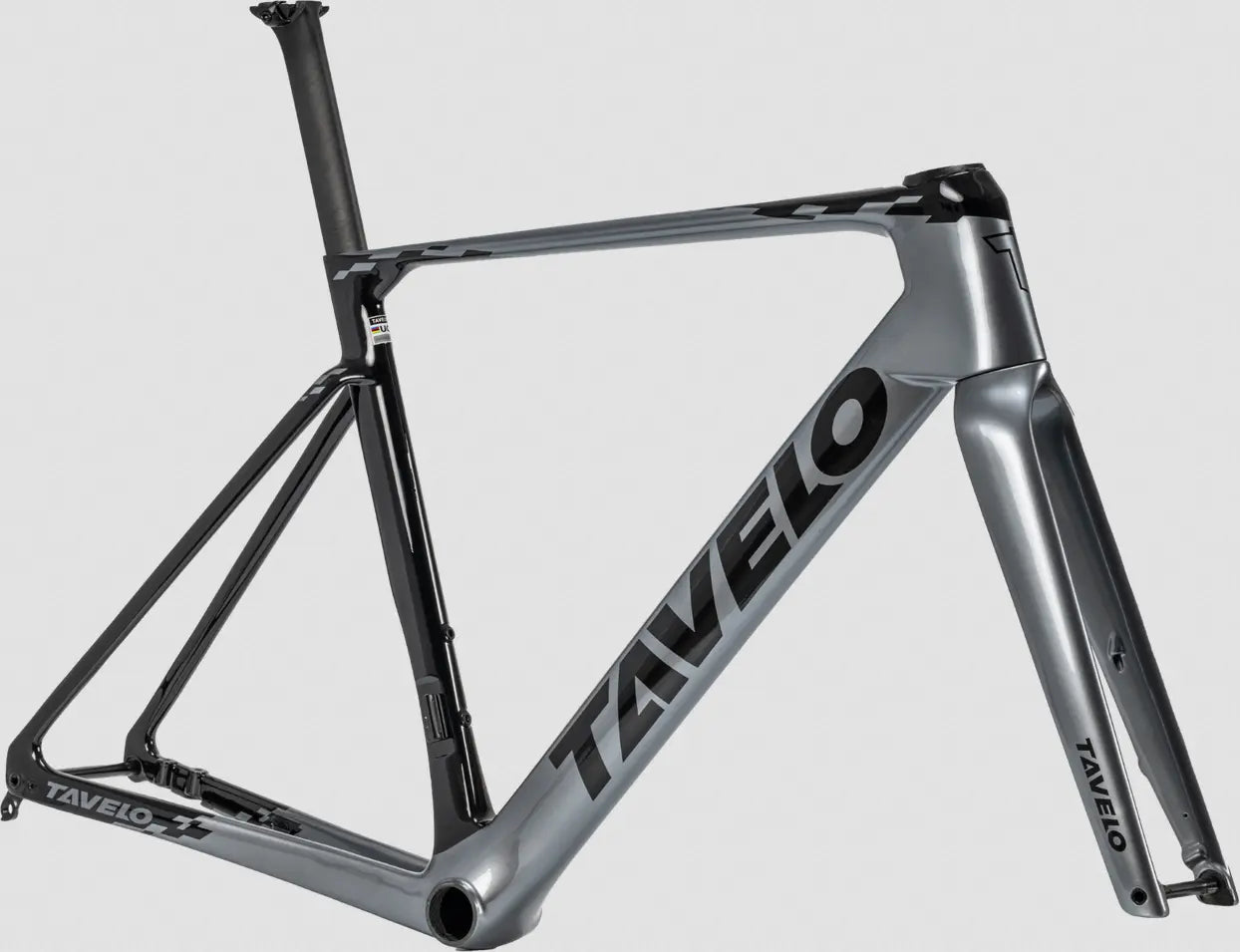

Tavelo Arow Race Frameset - Polestar (Incl Integrated Handlebar)

Tavelo Arow Race Frameset - Polestar (Incl Integrated Handlebar)

R 33,900.00
R 33,900.00
Sale Sold out
Tax included.
Frame Size
Handlebar size
Stem Lenght

Tavelo Arow: Born to Race

The Tavelo Arow is built on the success of the Attack frameset. UCI Certified and taking advantage of the recently relaxed UCI rules, the Arow is the more aero brother of the Attack. Racey geometry, a stiff bottom bracket and stylish paint jobs all lead to create a bike that looks fast as fast as it rides.

  • 990 ±40g (Size M, including paint and accessories)
  •  Fully Internal Cable Routing
  • Toray T800 Carbon Fiber
  • BB86 Bottom Bracket
  • 32mm Tire Clearance
  • Aero optimized
  • Package Includes: Frame, Fork, Seatpost, Saddle Clamp (Both alloy and carbon rail saddles) Thru Axles, Headset & Spacers, Shimano Compatible (24mm spindle) Bottom Bracket, Integrated handlebar

Specifications

  • Frame Material: Toray T800
  • Thru Axles: Front: 12×100, Rear: 12×142
  • Headset: FSA (32.8-41.8mm to 34.1-46.9mm)
  • BB: PF-BB86 (Press-fit)
  • Front derailleur: Removable Hanger
  • Tire clearance: Max. 700*32C
  • Sizes: XS (420mm), S (450mm), M (480mm), L (510mm), XL (540mm), XXL (580mm)
  • Weight: From 820g (For specifics, See below)
  • Brakes: Disc Brake
  • Shifting: Di2 / eTap. No support for mechanical shifting
  • Contents: Frame, Fork, Seatpost, Headset, Integrated Handlebar
  • Warranty: Lifetime Warranty

Geometry:

420 450 480 510 540 580
Add to Compare






Reach 368 375 383 391 399 409
Stack 508 517 529 545 567 595
Top Tube (effective) 509 518 534 552 572 591
Seat Tube C-T 420 450 480 510 540 580
Head Angle 70.8 71.4 72 72.8 73 73
Seat Angle 75 74.5 74 73.5 73 73
Head Tube 106.4 113.7 124.2 139.2 161.4 190.7
Chainstay 410 410 410 410 410 410
Wheelbase 971.6 976.4 983 989.1 1001.9 1020.5
Front Centre 572.2 577 583.5 589.3 602 620.5
Standover 702 727 752 779 805 841
BB Drop 71 71 71 70 70 70
Fork Rake / Offset 45 45 45 45 45 45
Trail 72.4 68.4 64.6 59.6 58.4 58.4
Fork Length (A2C) 370 370 370 370 370 370

Weights:
Size Raw Frame (No paint or accessories) GEOM Series
 (Including paint and accessories) 		POLESTAR Series

(Including paint and accessories)

 ZEBRA Series
(Including paint and accessories)
 AROW02 Series
(Including paint and accessories)
420 820 ±25g 950 ±40g 950 ±40g 950 ±40g 955 ±40g
450 835 ±25g 965 ±40g 965 ±40g 965 ±40g 970 ±40g
480 850 ±25g 990 ±40g 990 ±40g 990 ±40g 995 ±40g
510 870 ±25g 1010 ±40g 1010 ±40g 1010 ±40g 1015 ±40g
540 890 ±25g 1040 ±40g 1040 ±40g 1040 ±40g 1045 ±40g
580 910 ±25g 1060 ±40g 1060 ±40g 1060 ±40g 1065 ±40g
Front Fork 355 ±15g 380 ±35g 380 ±35g 380 ±35g 380 ±35g
Seatpost 113 ±5g 128 ±15g 128 ±15g 128 ±15g 128 ±15g
