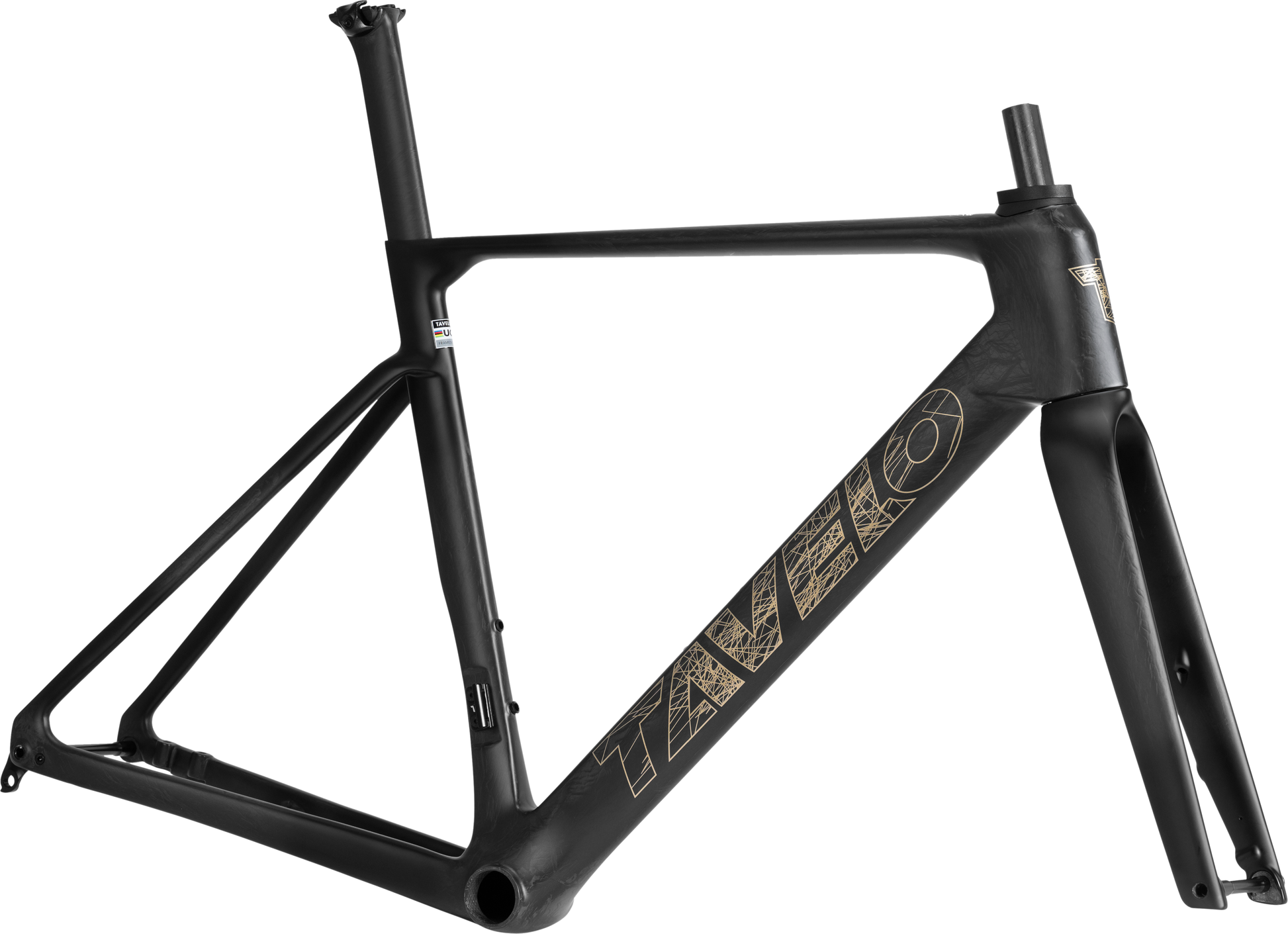

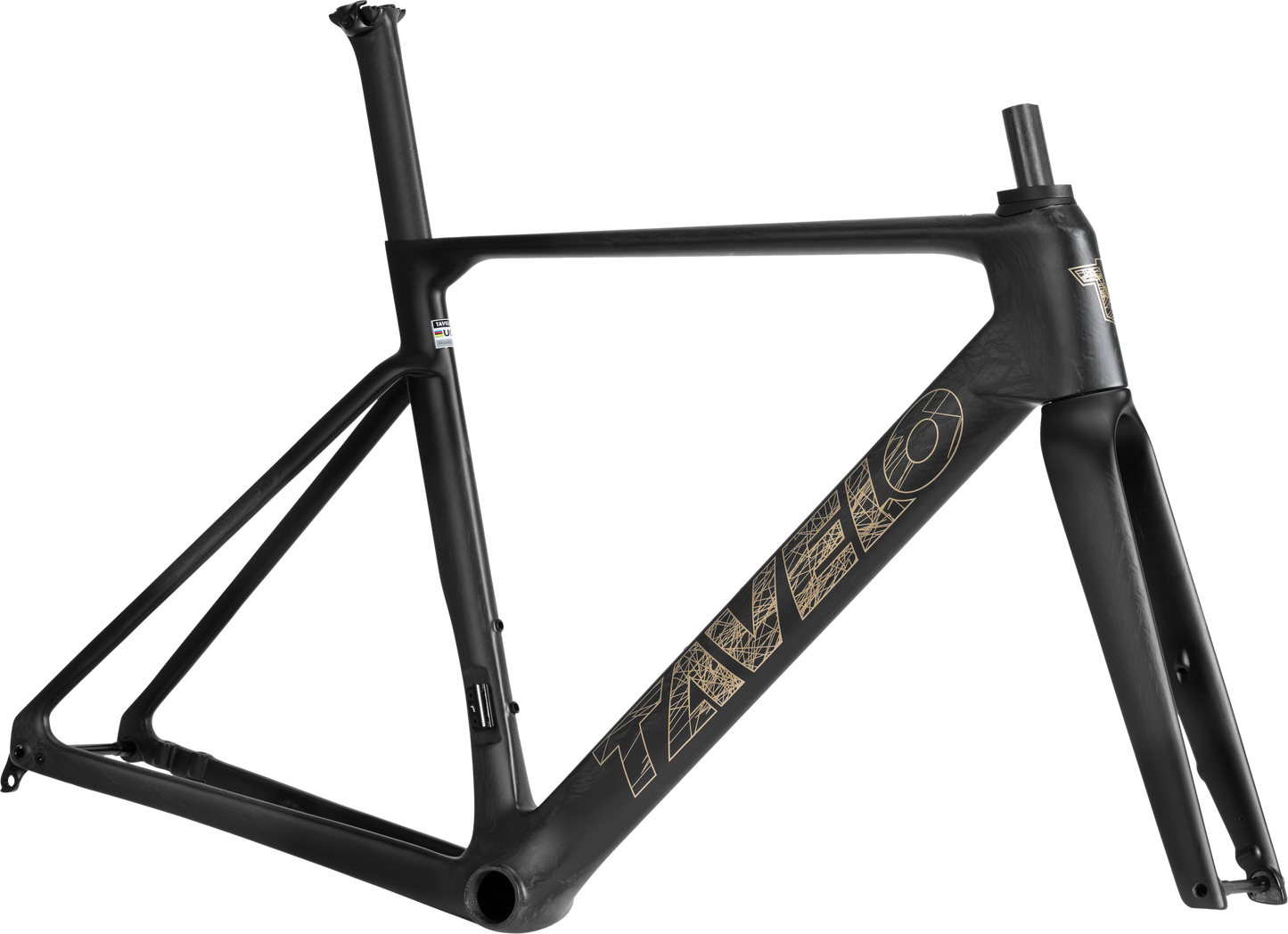

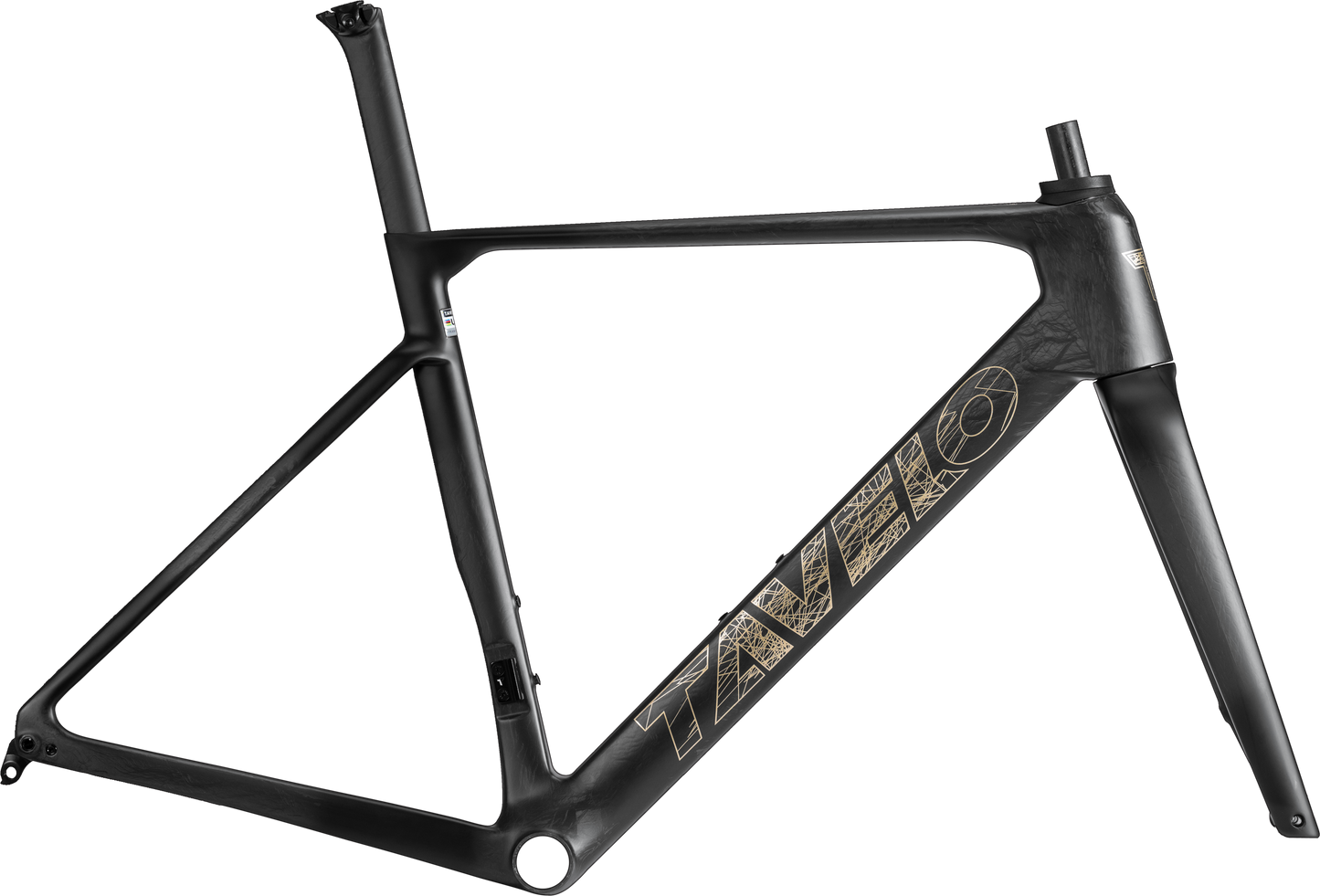

Tavelo Arow SL Frameset - Plaid (Incl Integrated Handlebar)

Tavelo Arow SL Frameset - Plaid (Incl Integrated Handlebar)

R 39,965.00
R 39,965.00
Sale Sold out
Tax included.
Frame Size

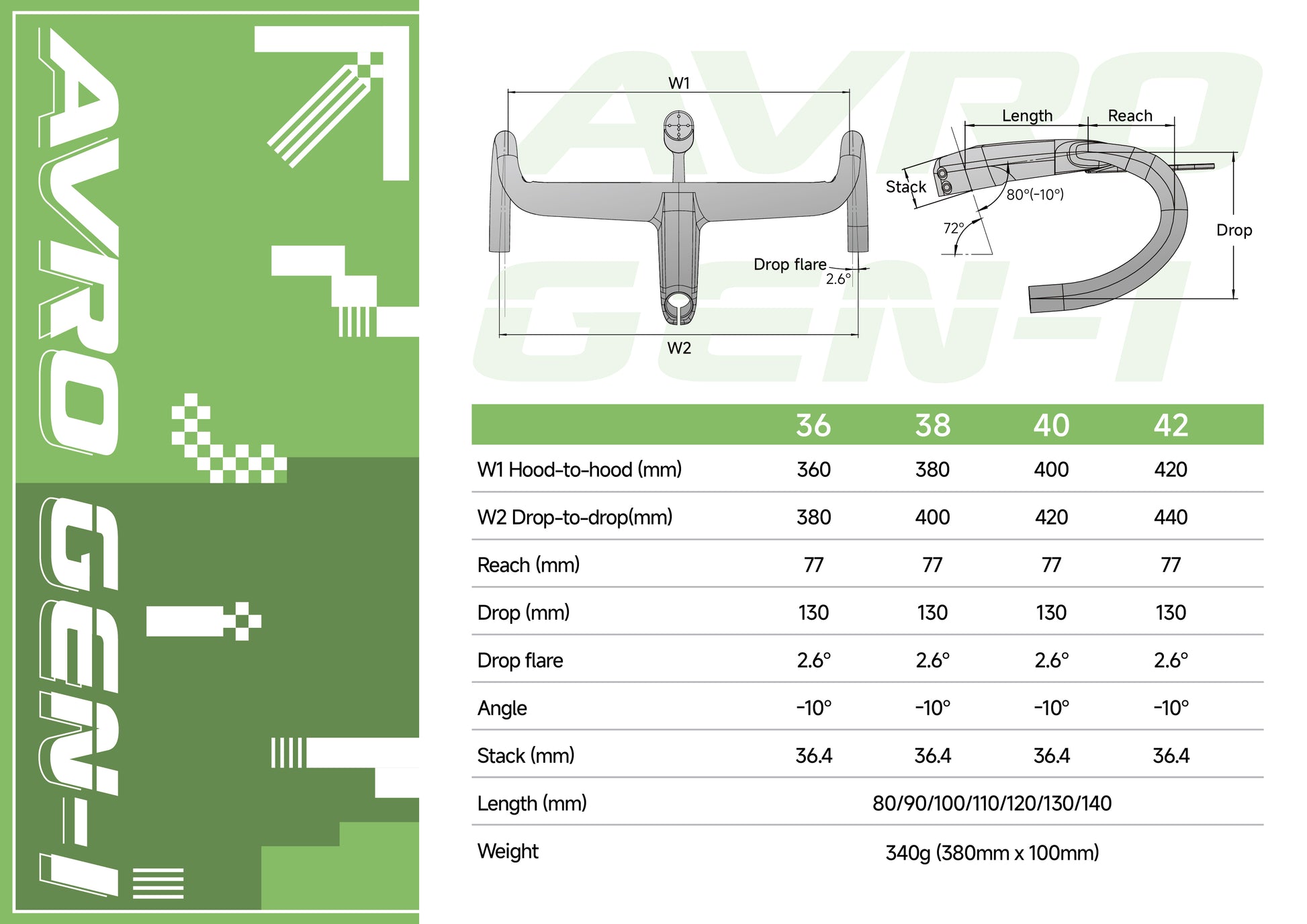

Handlebar size
Stem Lenght

Couldn't load pickup availability



Tavelo Arow SL: Born to Race

The Tavelo Arow SL is built on the success of the Attack frameset. UCI Certified and taking advantage of the recently relaxed UCI rules, the Arow features more aerodynamically efficient profiles than it's predecessor, all while shedding weight.

  • 710g frameset weight ( xs frame unpainted )
  •  Fully Internal Cable Routing
  • Toray T110 Carbon Fiber
  • BB86 Bottom Bracket
  • 32mm Tire Clearance
  • Aero optimized
  • Package Includes: Frame, Fork, Seatpost, Saddle Clamp (Both alloy and carbon rail saddles) Thru Axles, Headset & Spacers, Shimano Compatible (24mm spindle) Bottom Bracket, Integrated handlebar

Specifications

  • Frame Material: Toray T1100
  • Thru Axles: Front: 12×100, Rear: 12×142
  • Headset: FSA (32.8-41.8mm to 34.1-46.9mm)
  • BB: PF-BB86 (Press-fit)
  • Front derailleur: Removable Hanger
  • Tire clearance: Max. 700*32C
  • Sizes: XS (420mm), S (450mm), M (480mm), L (510mm), XL (540mm), XXL (580mm)
  • Weight: From 710g (For specifics, See below)
  • Brakes: Disc Brake
  • Shifting: Di2 / eTap. No support for mechanical shifting
  • Contents: Frame, Fork, Seatpost, Headset, Integrated Handlebar
  • Warranty: Lifetime Warranty

Geometry:

420 450 480 510 540 580
Add to Compare






Reach 368 375 383 391 399 409
Stack 508 517 529 545 567 595
Top Tube (effective) 509 518 534 552 572 591
Seat Tube C-T 420 450 480 510 540 580
Head Angle 70.8 71.4 72 72.8 73 73
Seat Angle 75 74.5 74 73.5 73 73
Head Tube 106.4 113.7 124.2 139.2 161.4 190.7
Chainstay 410 410 410 410 410 410
Wheelbase 971.6 976.4 983 989.1 1001.9 1020.5
Front Centre 572.2 577 583.5 589.3 602 620.5
Standover 702 727 752 779 805 841
BB Drop 71 71 71 70 70 70
Fork Rake / Offset 45 45 45 45 45 45
Trail 72.4 68.4 64.6 59.6 58.4 58.4
Fork Length (A2C) 370 370 370 370 370 370
